The Dawn of Synthetic Bioelectronic Materials

Synthetic Biowire with Higher Conductivity and Reduced Diameter

Synthetic Biowire with Higher ConductivityBiological production of electronic materials from inexpensive, renewable raw materials is an attractive sustainable approach that avoids the use of harsh chemical synthesis processes and yields products that are free of toxic components. Geobacter produces conductive nanowires comprised solely of natural amino acids, but the conductivity of the wires is substantially lower than organic wires that can be chemically synthesized.  We report in Small that introducing tryptophans into the amino acid sequence of the wires yields synthetic biowires that are 2000-fold more conductive than naturally produced wires with a diameter (1.5 nm) that is half that of the natural wires. This dramatic improvement in wire properties demonstrates the potential for the development of sustainable materials through synthetic biological approaches.


Recent Findings

Selected Press Coverage

Basic Science with an Applied Product

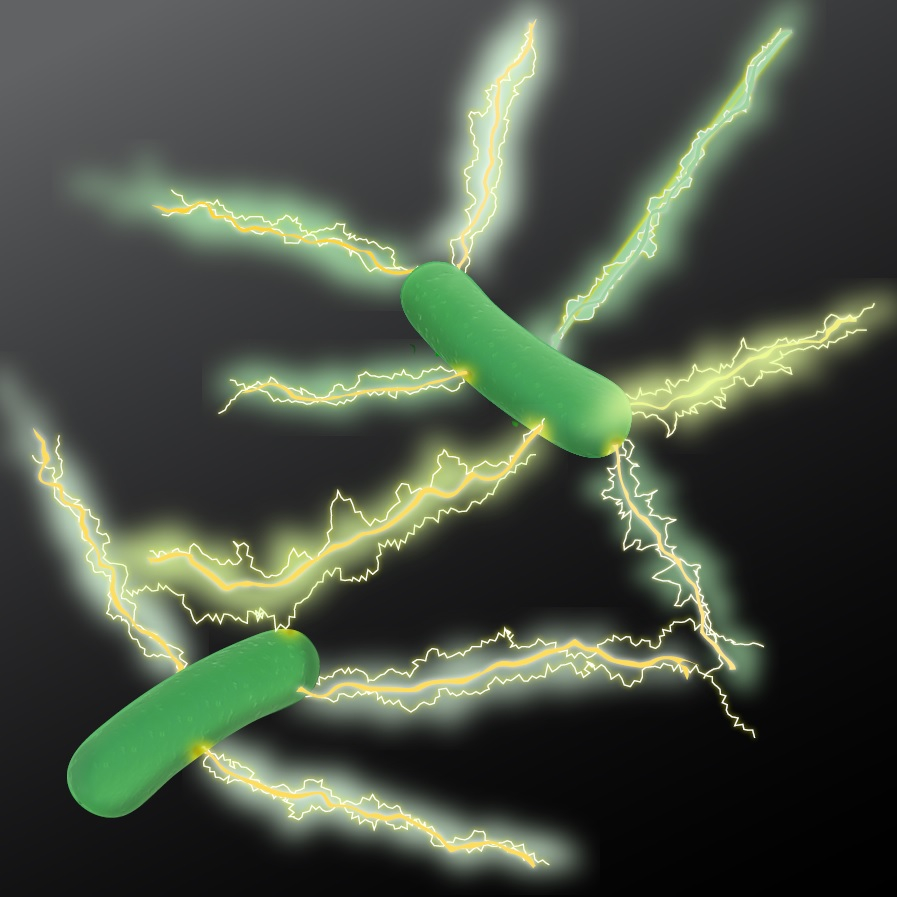

Geobacterspecies are of interest because of their novel electron transfer capabilities, the ability to transfer electrons outside the cell and transport these electrons over long distances via conductive filaments known as microbial nanowires.  Geobacters have a major impact on the natural environment and have practical application in the fields of bioenergy, bioremediation, and bioelectronics.

Geobacter-Fe © 2005 eye of science

The first Geobacter species (initially designated strain GS-15) was isolated from sediments in the Potomac River, just down stream from Washington D.C. in 1987. This organism, which is known as Geobacter metallireducens, was the first organism found to oxidize organic compounds to carbon dioxide with iron oxide as the electron acceptor. In other words, Geobacter metallireducens gains its energy by using iron oxide (an abundant rust-like mineral in soils and sediments) in the same way that humans use oxygen. As outlined in the publication links, Geobacter metallireducens and other Geobacter species that have subsequently been isolated from a wide diversity of environments provide a model for important iron transformations on modern earth and may explain geological phenomena, such as the massive accumulation of magnetite in ancient iron formations.

Bioremediation Geobacter species are also of interest because of their role in environmental restoration. For example, Geobacter species can destroy petroleum contaminants in polluted groundwater by oxidizing these compounds to harmless carbon dioxide and can remove radioactive metal contaminants from groundwater.  As understanding of the functioning of Geobacter species has improved it has been possible to use this information to modify environmental conditions in order to accelerate the rate of bioremediation.

Bioenergy  Geobacter species play an important role in some anaerobic wastewater digesters degrading organic contaminants with electron transfer to microorganisms that produce methane, an important biofuel.  Recent results suggest that this electron transfer proceeds through Geobacter’s conductive microbial nanowires.  The ability of Geobacter species to oxidize organic compounds with electron transfer to electrodes shows promise as a strategy for producing bioelectricity, especially in remote environments.

Microbial Electrosynthesis This is a process for converting the greenhouse gas carbon dioxide to transportation fuels and other useful organic products.  When driven with solar technology microbial electrosynthesis is an artificial form of photosynthesis that offers the possibility of converting sunlight and carbon dioxide to desirable organic compounds much more efficiently and more sustainably than biomass-based processes.

Bioelectronics Geobacter species have novel electronic properties that may have practical applications.  For example, they can form highly cohesive conductive films that have conductivities that rival those of synthetic conductive polymers. The conductivity of the Geobacter films results from a network of microbial nanowires, thin (ca. 3 nm) protein filaments that conduct electrons along their length with metallic-like conductivity.  Thus, Geobacter offers the possibility of making electronic sensors and other devices,that work under water and can readily couple biological and abiological interfaces, from inexpensive feedstocks, like acetic acid (i.e. vinegar).

Systems Approach to Environmental MicrobiologyGeobacter species have proven to be an excellent model for the development of genome-scale analysis of natural environments, bioremediation, and bioenergy applications.  This approach has included sophisticated diagnosis of the physiological status of the subsurface microbial community during bioremediation to guide bioremediation supplements and predictive computer modeling of groundwater bioremediation coupling genome-scale metabolic models with geohydrological models.

Life in Extreme Environments - Some Like it Hot

Recent Publications

Nikhil S. Malvankar, Vincent M. Rotello, Mark T. Tuominen and Derek R. Lovley.  2016.  Reply to 'Measuring conductivity of living Geobacter sulfurreducens biofilms'.  Nature Nanotechnology.  11: 913–914.

Yan Dang, Dawn E. Holmes, Zhiqiang Zhao, Trevor L. Woodard, Yaobin Zhang, Dezhi Sun, Li-Ying Wang, Kelly P. Nevin, and Derek R. Lovley.  2016.  Enhancing anaerobic digestion of complex organic waste with carbon-based conductive materials.  Bioresource Technology.  220:516-522.

Derek R Lovley.  Happy together: microbial communities that hook up to swap electrons.  The ISME Journal.  1-10.  doi:10.1038/ismej.2016.136
